20′ Sewage Tank for Sanitary Containers
20′ Sewage Tank for Sanitary Containers
Its modular and durable steel design allows for easy integration with sanitary containers or standalone use. Optional features include dual chambers for fresh and wastewater, as well as antifreeze systems to prevent freezing in low temperatures – making it suitable for year-round operation in cold climates.
Product specifications
The 20-foot sewage tank is a versatile and high-capacity solution for safe and efficient wastewater storage. Commonly used on construction sites, at festivals, in industrial zones or remote locations, it offers compliance with hygiene and environmental standards, while supporting modular connections to sanitary containers or standalone deployment.

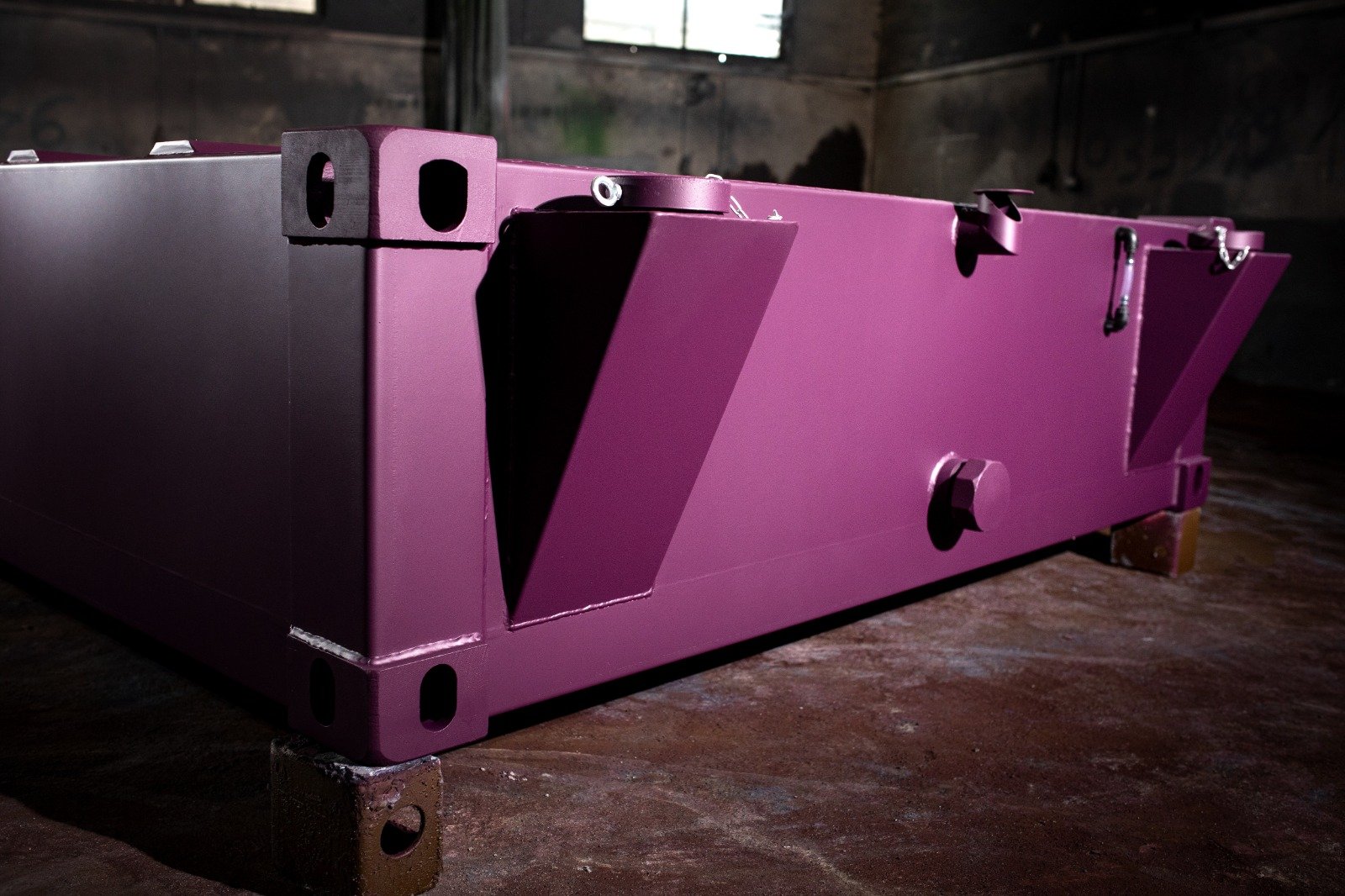

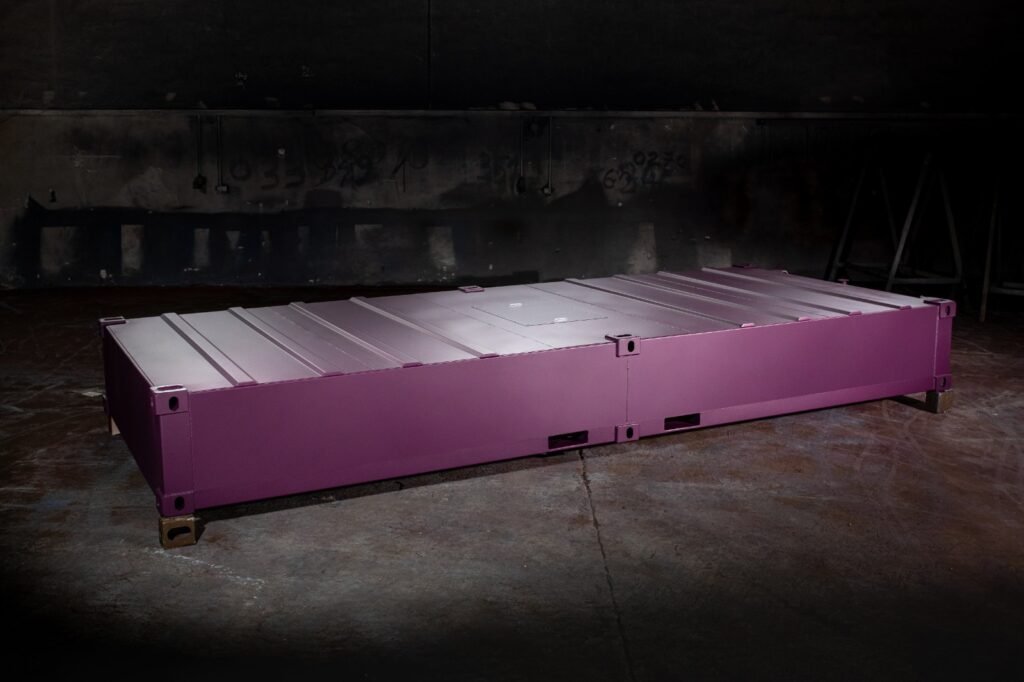

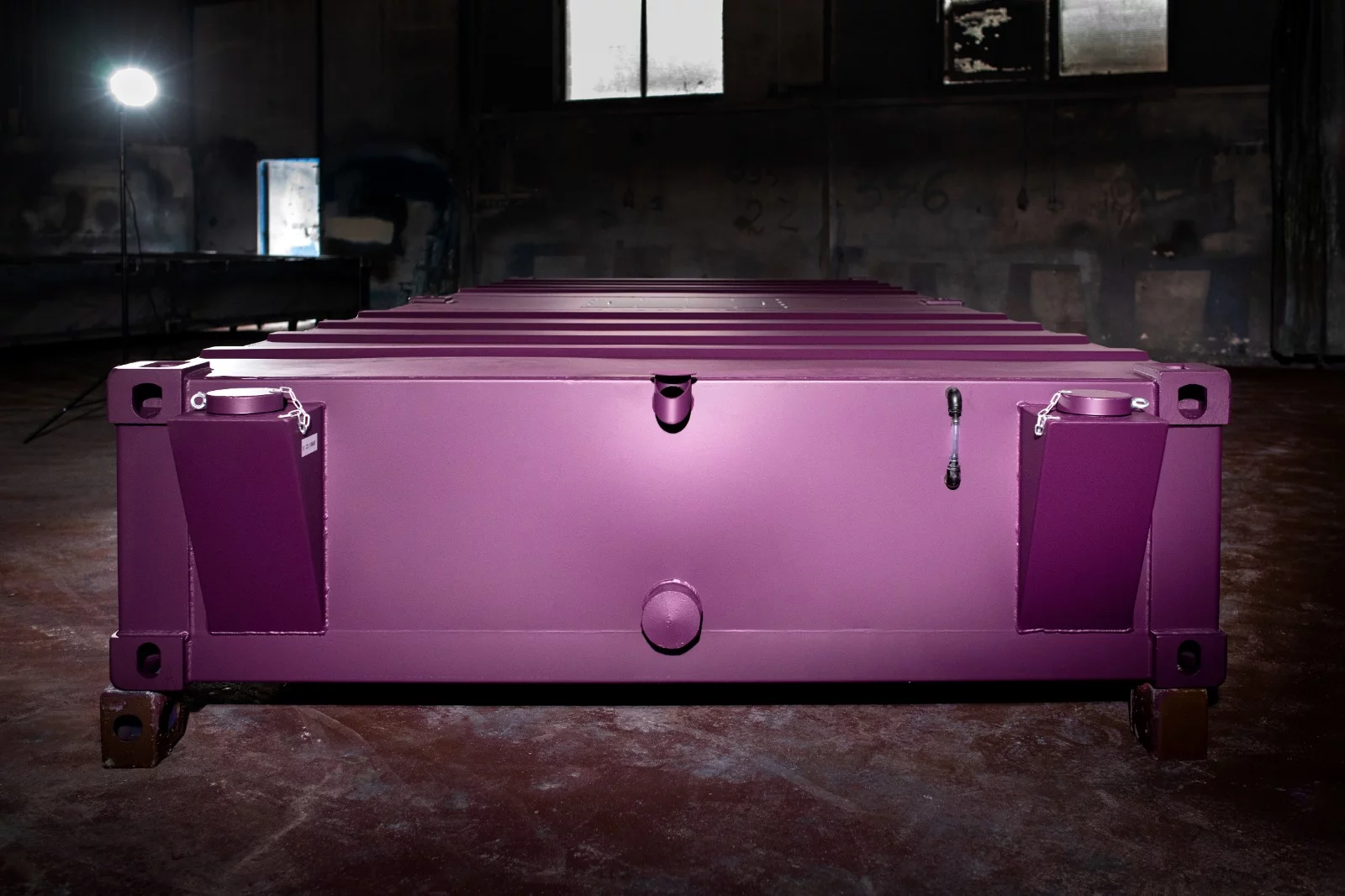

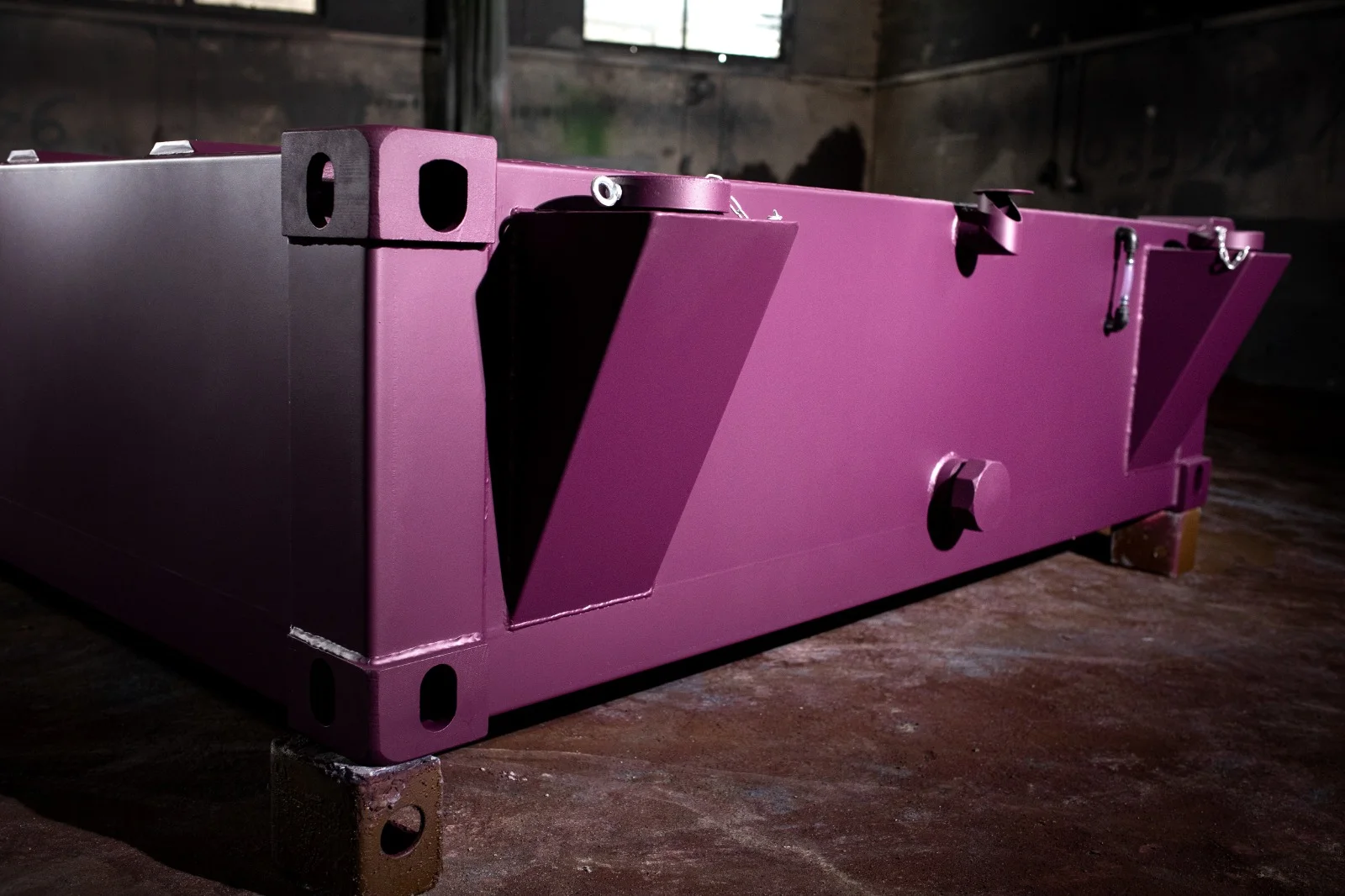

Built with robust welded steel construction, this tank features a capacity of approx. 8.5 m³, a level indicator, two inflow funnels (Ø 134 mm) for container connection, and a service opening for waste management access. Its reinforced steel roof and ISO-certified corner castings ensure stability during crane or forklift handling.
For cold climates, antifreeze systems and fresh water separation options can be integrated, making it ideal for year-round usage in demanding environments.
Technical Highlights:

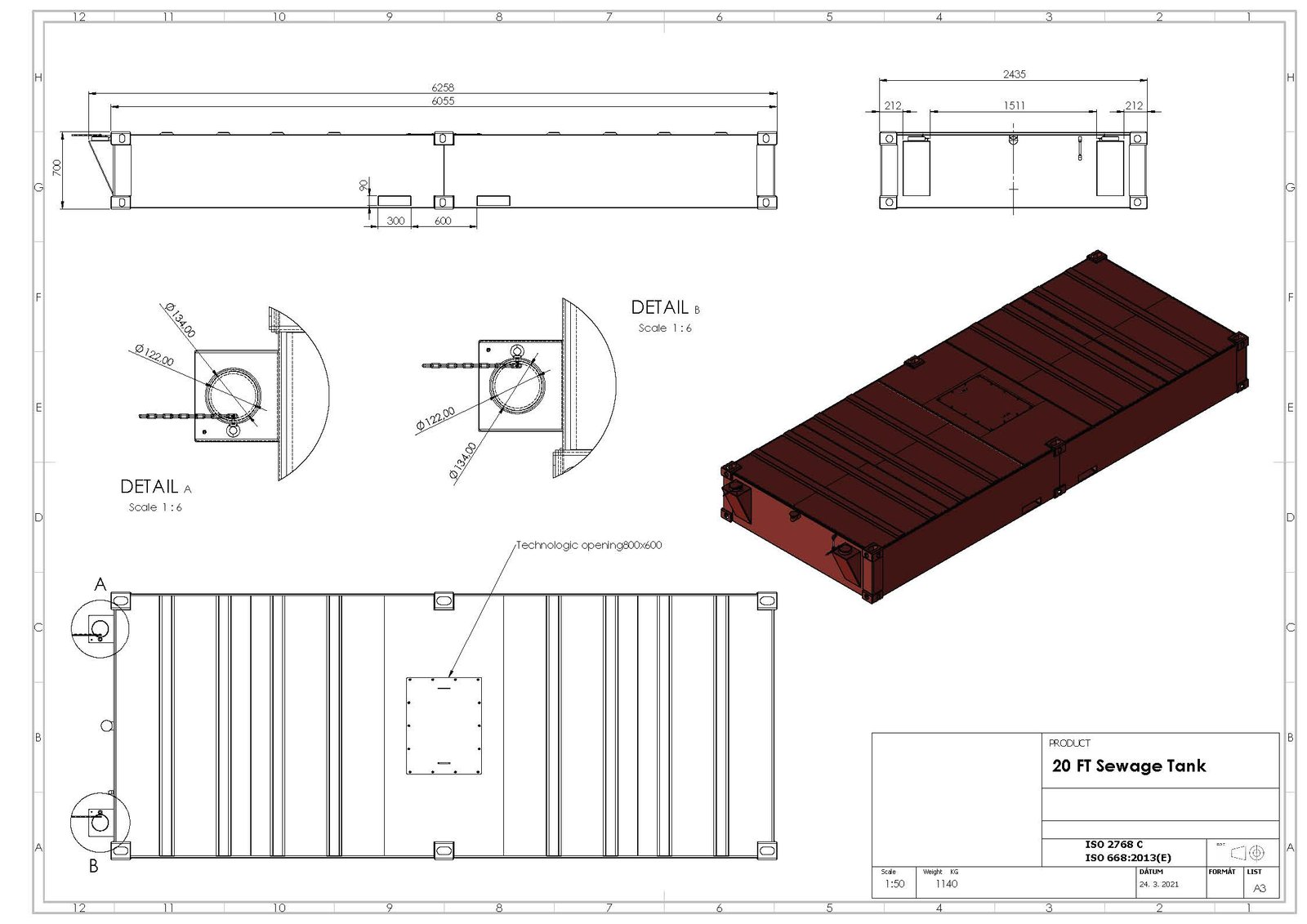

- External dimensions: 6055 mm (L) × 2435 mm (W) × 700 mm (H)
- Weight: approx. 1,100 kg
- Capacity: approx. 8.5 m³

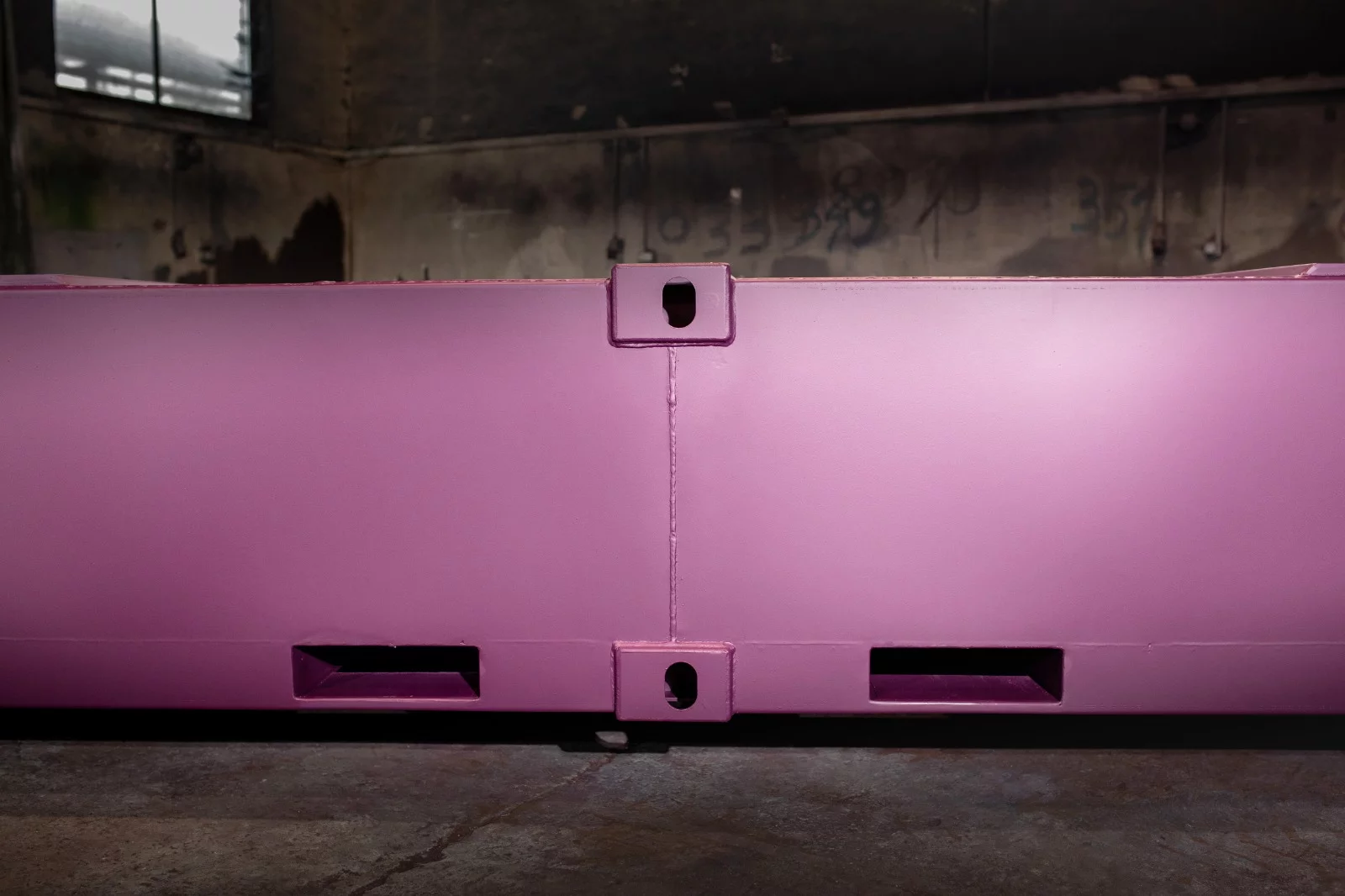

- Forklift pockets and crane-lifting compatible
- Self-supporting cross-beaded roof plate (1.5 mm)
- Bottom and walls: 3 mm steel
- Welded ISO corner castings (12 pcs, 6 mm)
- Level indicator, chimney vent, service access
Technical data
| External dimensions | L x W x H : 6.058 x 2.438 x 700 mm |
|---|---|
| Container Type | Sewage tank |
| Capacity | 8,5 qm |
| Weight | 1150kg |
| Color | Any |
