20' Office Container with Minikitchen
20' Office Container with Minikitchen
Product specifications
✅ Frame
- Material: High-strength steel profiles (S235JR and S355MC, EN 10025-2)
- Coating: 120 µm polyurethane paint, ISO 12944-2, Class C3M (corrosion-resistant)
- Standard Color: RAL 9002
- External Dimensions: 2435 mm x 6055 mm
✅ Floor
- Structure: Steel crossbeams with galvanized steel sheets (0.5 mm) on the underside
- Insulation: 100 mm mineral wool (λ = 0.040 W/mK) + 80 µm polyethylene vapor barrier
- U-value: 0.35 W/m²K
- Top Layer: 20 mm water-resistant particle board (EN 312, P3, E1, D-s2)
✅ Ceiling
- Structure: Steel profiles with wooden purlins (500 mm spacing), galvanized steel roof (0.5 mm, DX51D, EN 10327)
- Insulation: 100 mm mineral wool + 150 µm polyethylene vapor barrier
- U-value: 0.36 W/m²K
✅ Walls
- Panels: Sandwich panels with 60 mm mineral wool (λ = 0.040 W/mK)
- U-value: 0.57 W/m²K
- Fire Rating: A1 (EN 13501-1)
- Compliance: EN 13162
✅ Windows
- Profiles: Three-chamber PVC
- Glazing: Double-glazed (4/15/4 mm) – Ug = 1.1 W/m²K, Uw = 1.6 W/m²K
- Standard Size: 885 mm x 1372 mm
- Features: Dual opening (vertical/horizontal), double sealing for thermal insulation
✅ Doors
- Material: Painted aluminum profile with 40 mm EPS-filled leaf
- Steel Panels: 0.5 mm thick (DX51D, EN 10327)
- Thermal Performance: U-value = 1.8 W/m²K
- Standard Size: 905 mm x 2060 mm
- Equipment: Cylinder lock, metal handle, CE-certified (EN 14351-1)
✅ Minikitchen Equipment

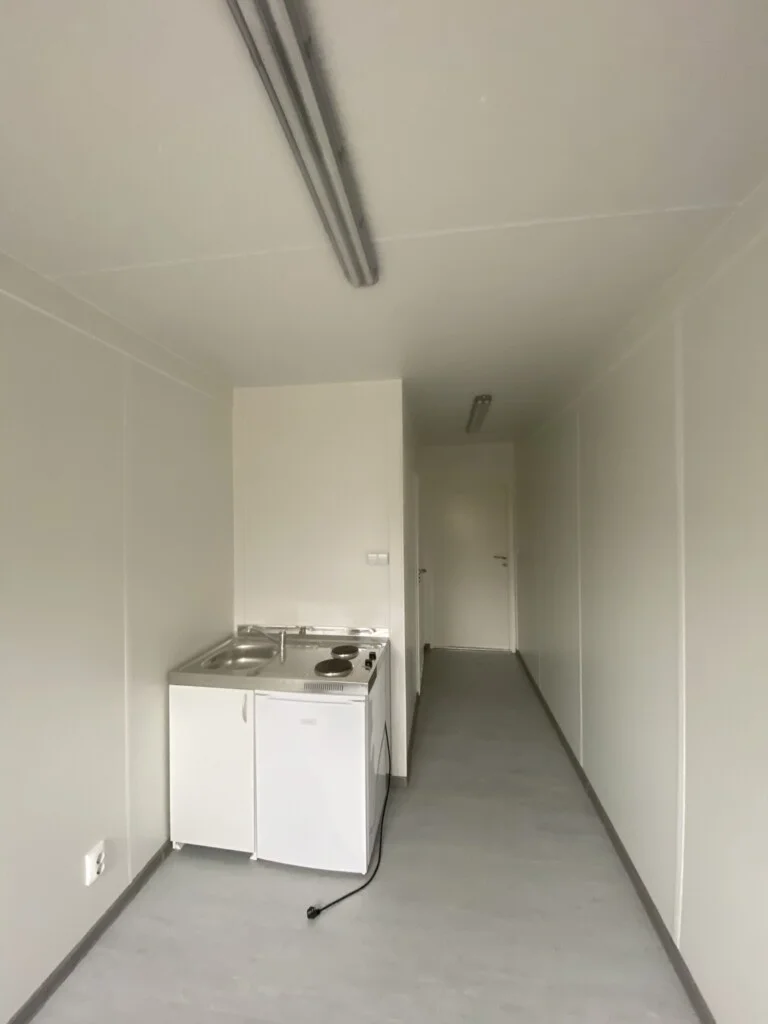

Placement: Installed in one corner, optimized for space efficiency and functionality

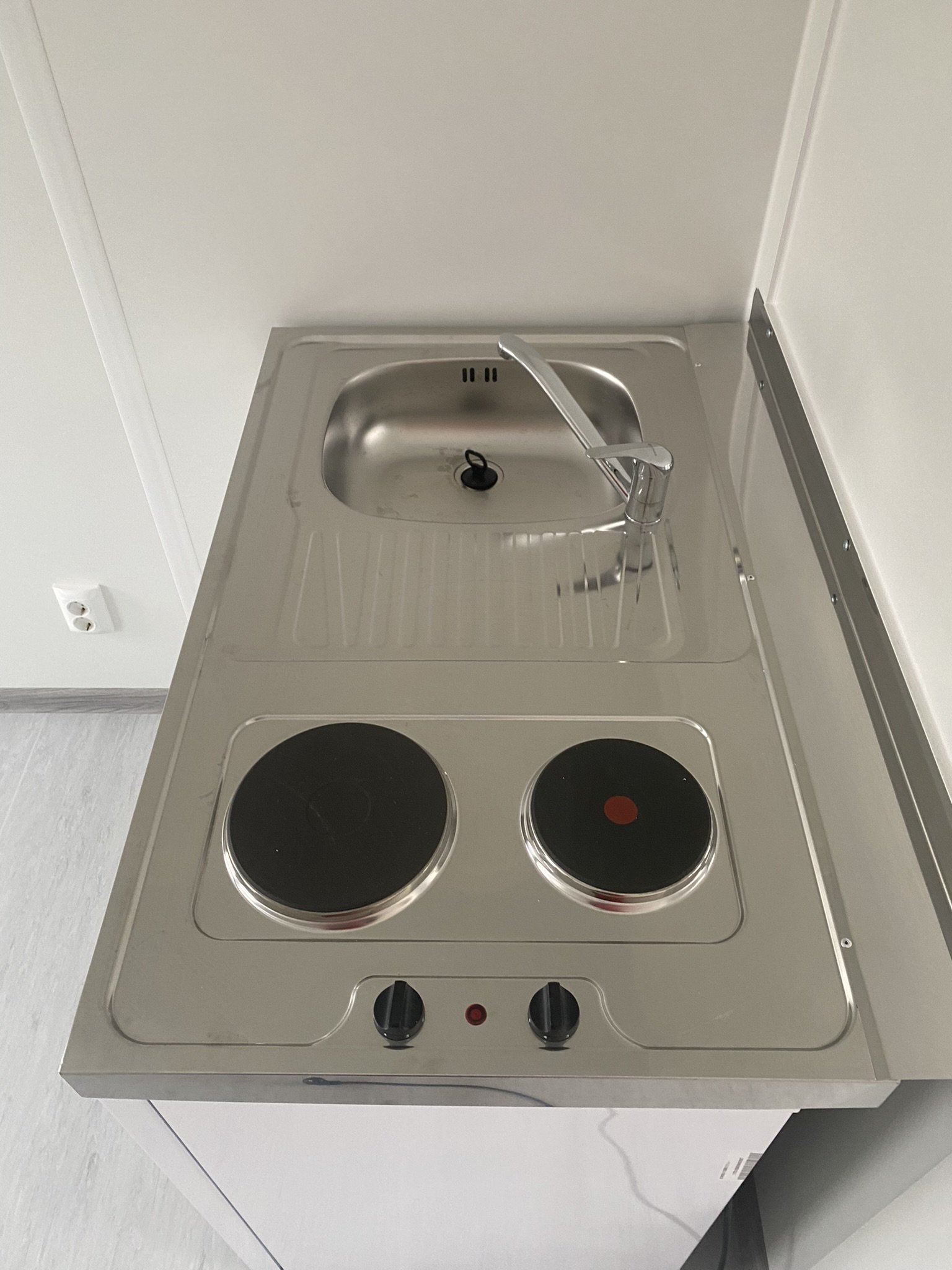

Cooking: Two electric burners integrated into the countertop
Refrigeration: Built-in mini fridge
Hot Water: 5L electric boiler for washing area
Additional Outlets: 2 extra 230V sockets (IP20) for kitchen appliances
Technical data
| Internal dimensions | L × W × H : 5.918 × 2,355 × 2.300mm / 2.500 mm |
|---|---|
| External dimensions | L × W × H : 6.055 × 2.435 × 2.590mm / 2.765 mm |
| Thermal insulation | Mineral wool |
| Container Type | Office Container |
| Weight | 1950kg |
| Color | Any |
