20′ Sanitary Container with 6 WC Cabins
20′ Sanitary Container with 6 WC Cabins
Product specifications
Frame and Dimensions:

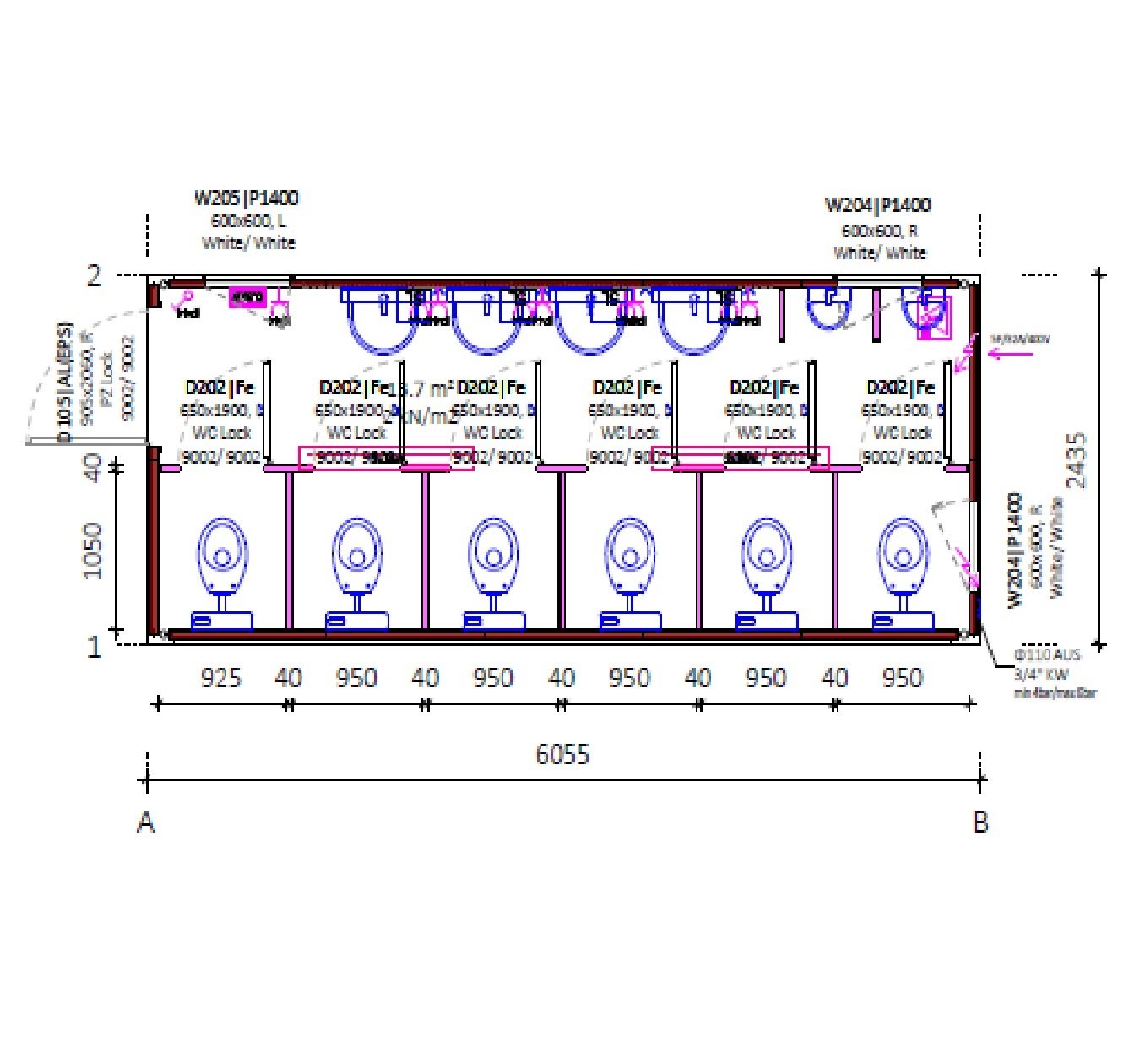

This 20-foot sanitary container measures 6055 mm × 2435 mm and is constructed on a painted steel frame (C3M, ISO 12944-2), offering 8-12 years of durability.
Floor and Roof Structure:
The floor system consists of galvanized steel crossbeams, 20 mm moisture-resistant cement board, and 100 mm mineral wool insulation (U = 0.36 W/m²K), finished with a 1.5 mm antistatic PVC layer.
The ceiling structure is reinforced with galvanized profiles, insulated with PU-30 and 100 mm mineral wool (U = 0.36 W/m²K).
Walls and Partitions:
External walls are built from sandwich panels with 60 mm mineral wool insulation (λ = 0.040 W/mK). Internal partitions use 40 mm panels, 2500 mm in height. A dedicated sanitary service wall (180 mm) is also integrated.
Doors and Windows:
- 6 x WC cabin doors (650×1900 mm), steel with EPS insulation and locks
- 1 x exterior aluminium door (905×2060 mm)
- 1 x technical access door (850×2000 mm)
- 2 x sanitary tilt windows (600×600 mm), single sash
Sanitary Equipment:
- 6 x ceramic toilet pans with 9 L flush tanks
- 2 x ceramic urinals with flush valves
- 4 x ceramic washbasins (500 mm wide) with single-lever mixers
- 4 x mirrors (600×400 mm), each with PVC shelf
- 4 x metal toilet roll holders and double towel hooks
- Floor drain (50 mm)
- Ball valve with integrated dirt filter
Electrical Equipment:
- Distribution box (IP65)
- External 32A / 400V power socket
- 2 x fluorescent ceiling lights (2×36W, IP66)
- 5 x 230V sockets (IP44)
- 1 x light switch (16A, IP44)
- 1 x 2kW convector heater with digital thermostat (IP24)
- 1 x 500W electric heater (IP20)
- 1 x electric fan (175 m³/h, 230V, IPX4)
Technical data
| Internal dimensions | L × W × H : 5.918 × 2,355 × 2.300mm / 2.500 mm |
|---|---|
| External dimensions | L × W × H : 6.055 × 2.435 × 2.590mm / 2.765 mm |
| Thermal insulation | PU-Panels, Mineral wool |
| Weight | from 2500 Kg |
| Color | Any |
Recommended Products

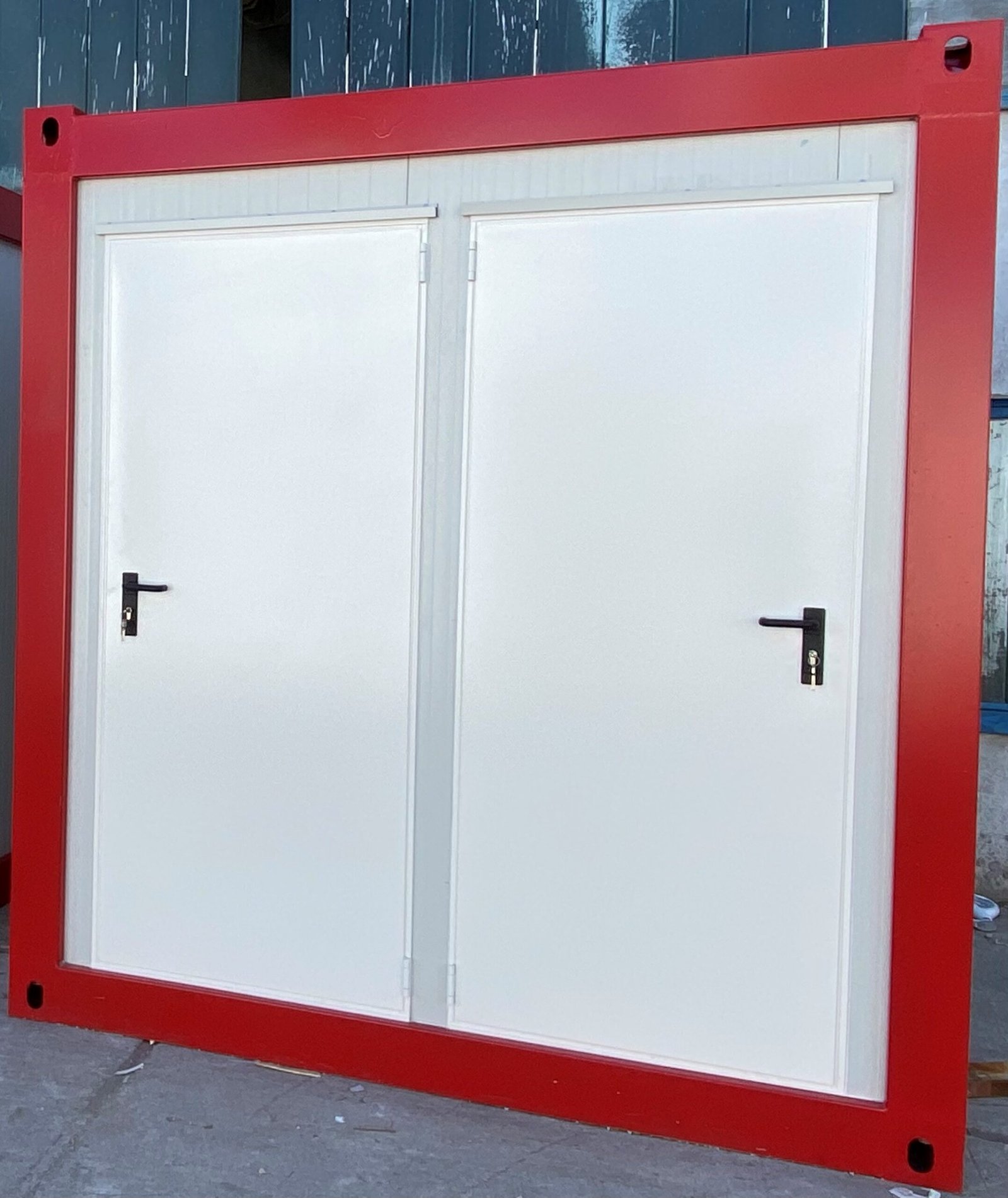

5′ Double Cabin Toilet Container
