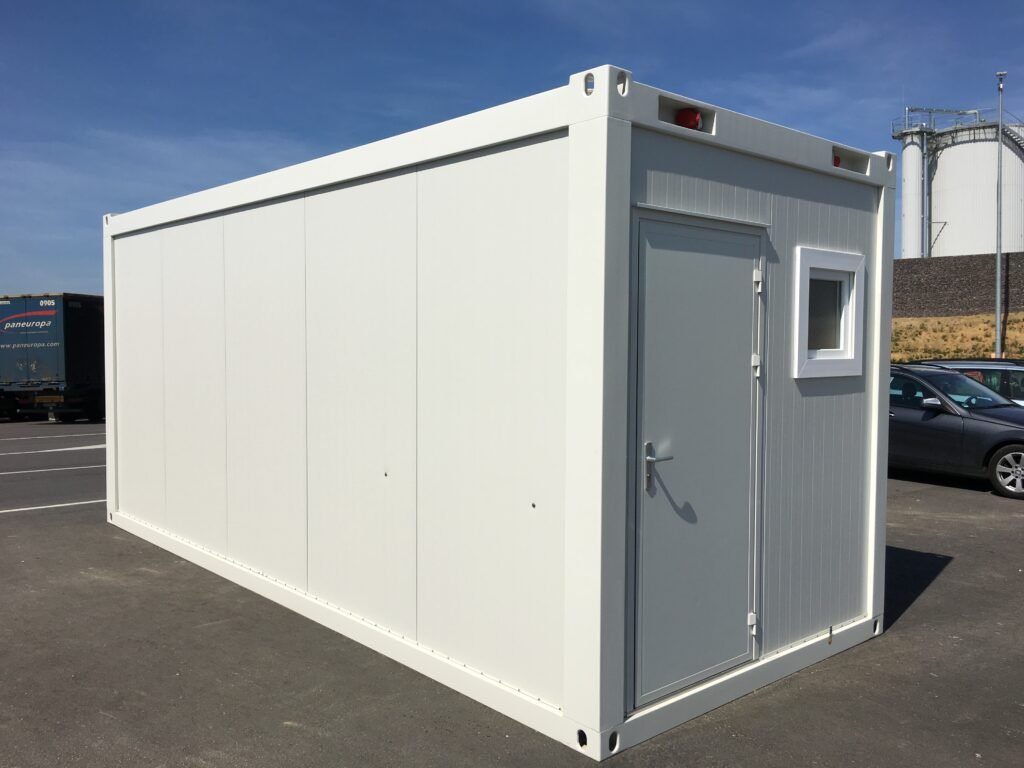

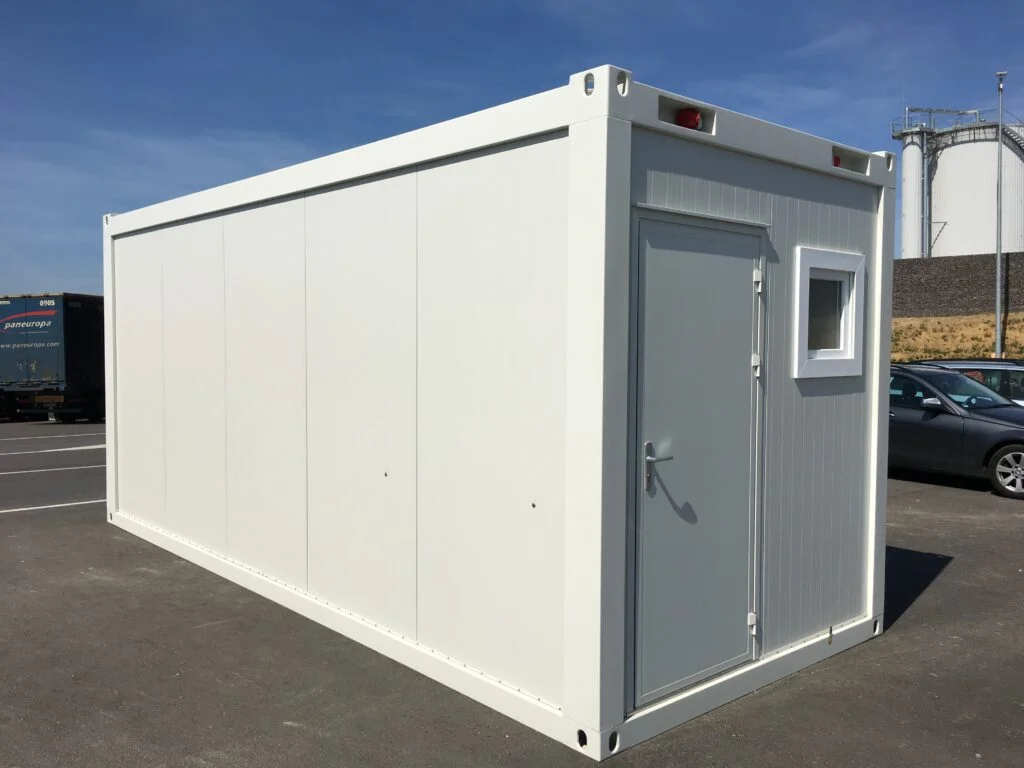

20' Mix WC+Shower
20' Mix WC+Shower
Product specifications

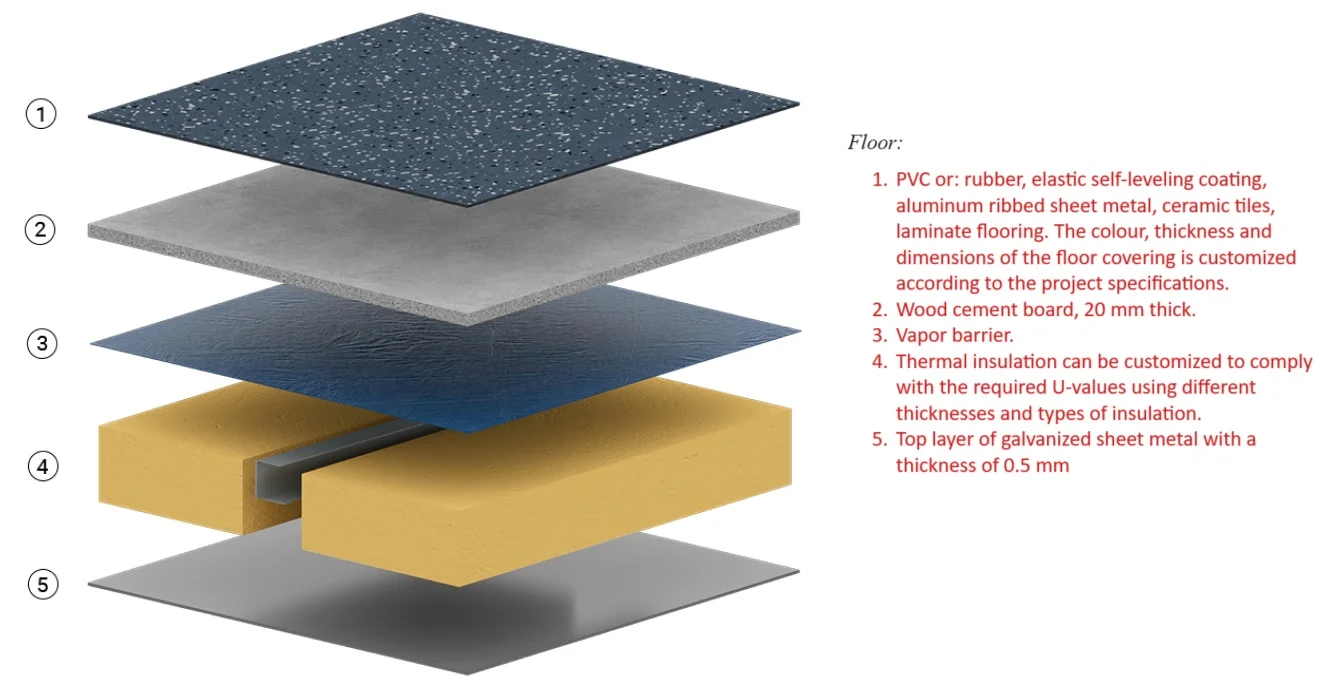

A container with dimensions 2435x6055mm is constructed with a painted steel frame (C3M, 7-15 years durability). The floor frame, measuring 2435x6055mm and 120mm in height, includes grounding M10 points at each corner, anchoring points, and wide forklift pockets (350/90 mm, 2050 mm apart). The floor is covered with 1.5mm thick antistatic PVC, beneath which lies a 20mm thick humidity-resistant cement board and 100mm thermal insulation (U=0.36 W/m2K).

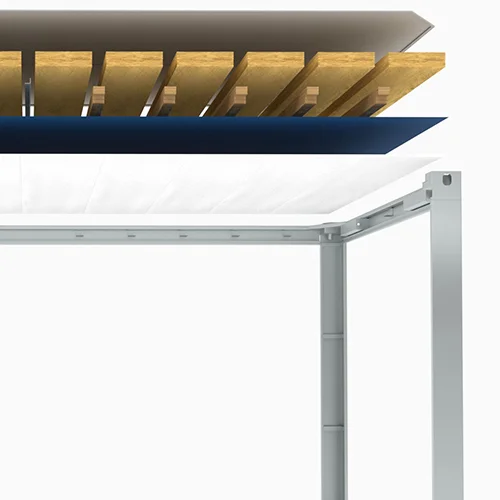

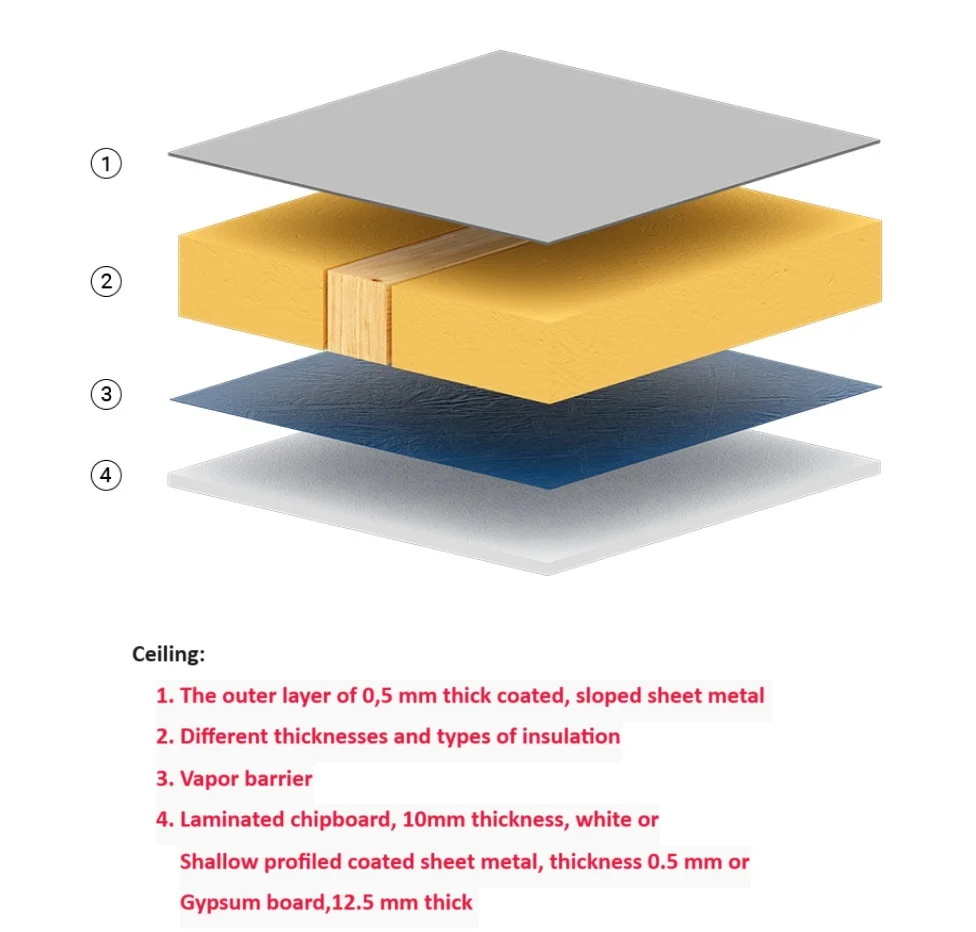

The roof frame, also 2435x6055mm and 200mm in height, features a hole with gland and IT/LAN label, PU-30 and 100 MW DF-40 ceiling insulation, torsion reinforcement, and Welser steel reinforcement. Structural columns are 210x152mm, 2645mm long, and 4mm thick.

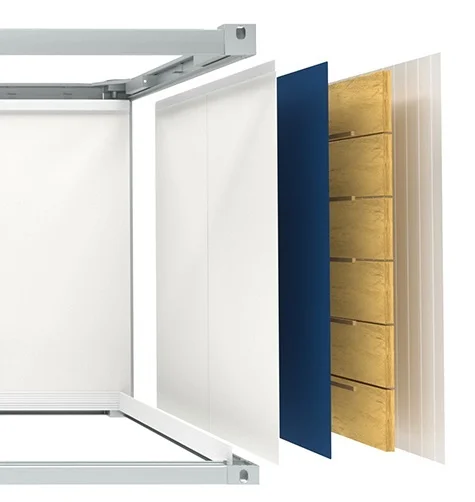

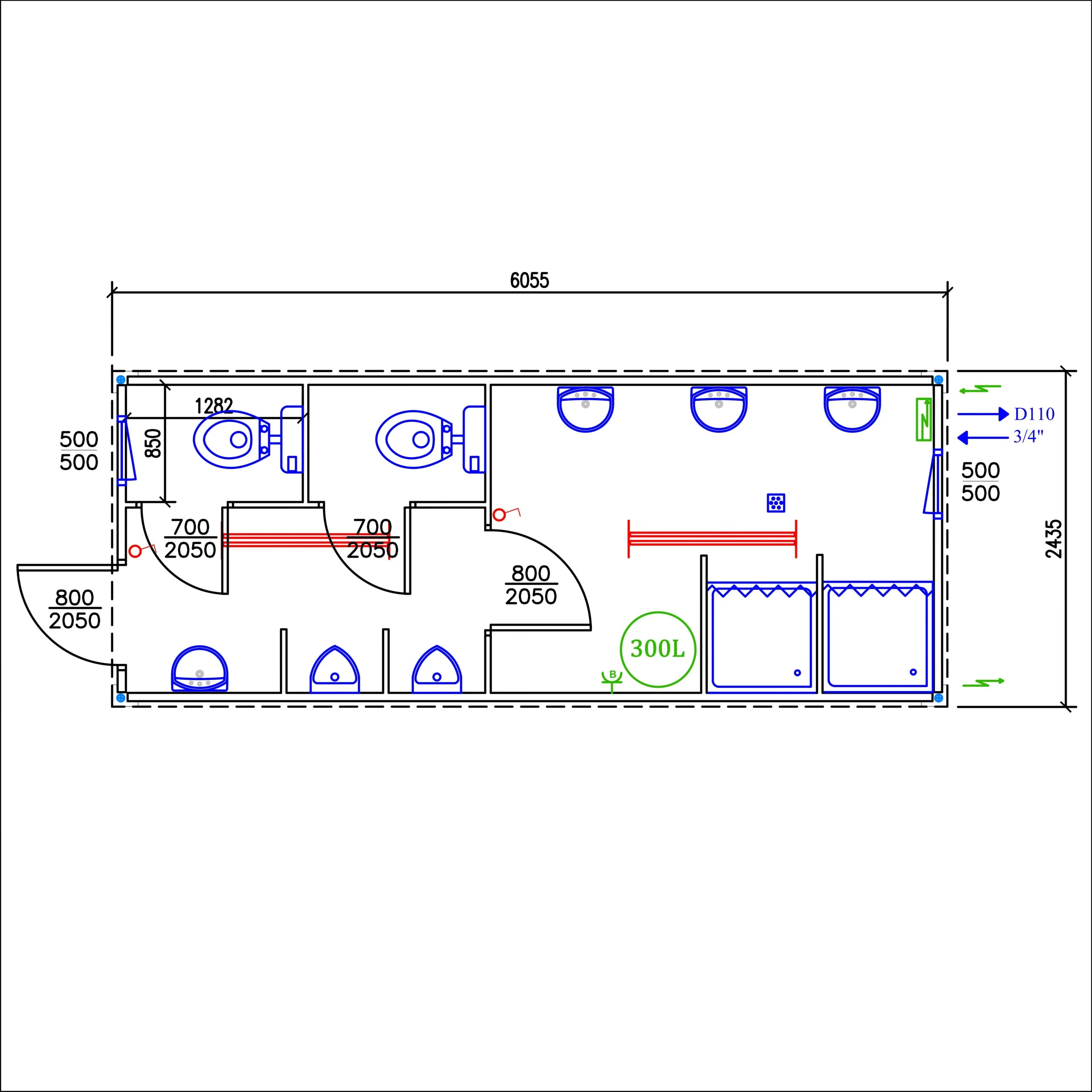

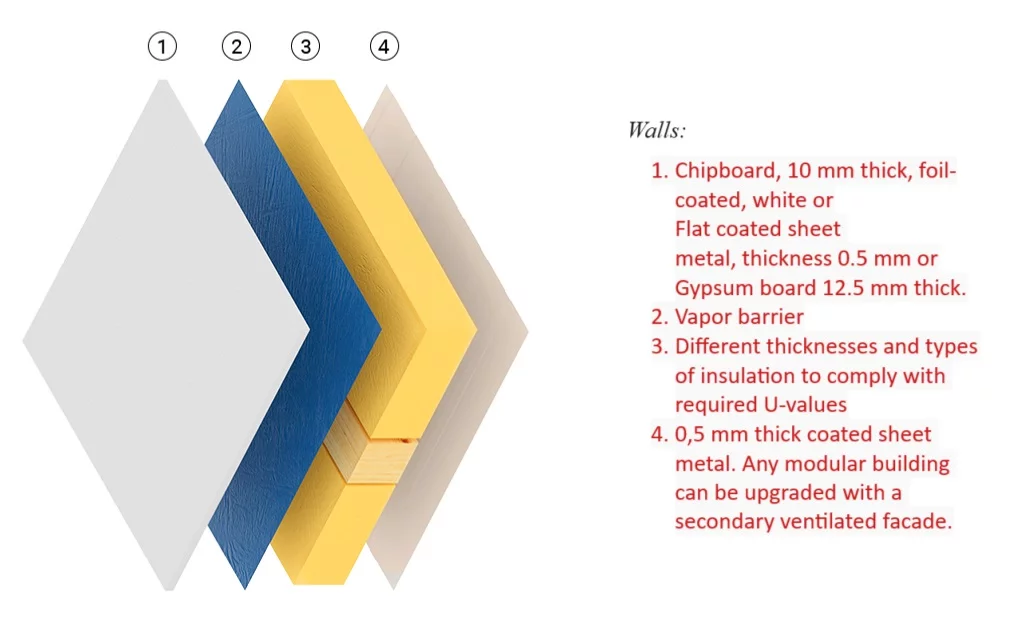

Interior walls include 14 PU-60 panels and SP partition walls (2500mm high, 40mm thick). The sanitary wall is 180mm high, made of steel sheet. There are two toilet cabin doors (650x1900mm) with locks, galvanized and painted steel, and polystyrene insulation. There are also two 600x600mm single fold windows, an aluminium door (905x2060mm), and a single fold sheet metal door (850x2000mm).
Electric equipment includes a distribution box (12 places, IP65), a 32A/400V socket, recessed roof frame, two fluorescent lights (2x36W, IP66), a 16A/230V light switch (IP44), five single sockets (16A/230V, IP44), a 2kW electric heater with a digital thermostat (IP24), a 500W electric convector heater (IP20), and connections for a water heater (200-500L, 4-10kW/400V, IP44). An electric fan (175m3/h, 230V, IP-X4) is also included.
Sanitary equipment includes a ball valve with a dirt filter, a 2kW, 200L pressure water heater, floor reinforcement plate, two one-hand mixing shower taps with vertical bars, three one-hand mixing water taps for washbasins, three 500mm wide ceramic washbasins, two polyester shower cabins with PVC curtains (770x890mm), two ceramic toilet pans with 9L flush tanks, two ceramic urinals with flush valves, three mirrors with PVC shelves (600x400x3mm), two metal toilet roll holders, five metal double towel hooks, and a floor drain (PURUS, 50mm).
Technical data
| Internal dimensions | L × W × H : 5.918 × 2,355 × 2.300mm / 2.500 mm |
|---|---|
| External dimensions | L × W × H : 6.055 × 2.435 × 2.590mm / 2.765 mm |
| Thermal insulation | PU-Panels, Mineral wool |
| Color | Any |
Recommended Products
16′ Office Container
This 16′ corridor container is primarily used as a floor container, providing a robust and modular solution for various applications. Ideal for creating walkways or connecting spaces at construction sites, events, and other temporary setups, it ensures seamless integration and flexibility. Easy to install and relocate, this container is a practical choice for optimizing space and enhancing functionality.
20′ Standard Modular Container
A 20′ office container is a robust, modular workspace solution, specifically designed for versatility and mobility. Ideal for use as temporary offices at construction sites, event management offices, disaster relief command centers, remote field offices, and additional office space for expanding businesses. Their portability allows for easy relocation and reconfiguration as project needs change. Quickly installed and effortlessly adaptable, this container is the epitome of convenience. Prefabricated and prepped for immediate use, it arrives ready to revolutionize your environment without delay. Designed for swift delivery and assembly, it optimizes time and resources, ensuring seamless integration into your workflow. Its mobility offers unparalleled flexibility, allowing for easy relocation or reconfiguration to meet evolving needs.

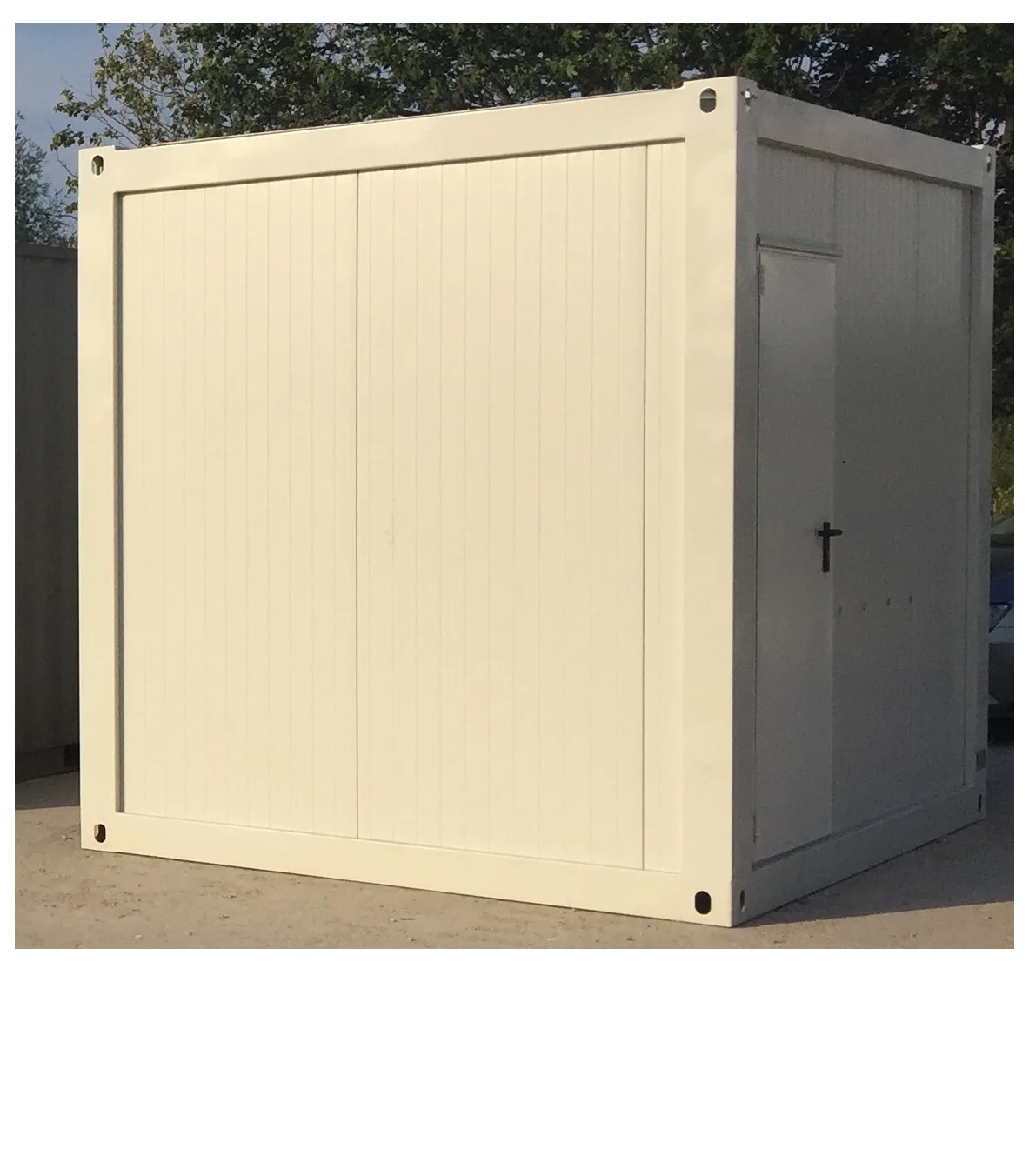

10′ Office Container
