10' Storage Container
10' Storage Container
Product specifications
Technical Specifications – 10′ Storage Container
Construction:
The container is primarily built from welded steel frames and corrugated steel panels, ensuring structural integrity and durability. The wooden floor is fixed to the cross members using self-tapping screws. Optionally, a steel sheet floor can be supplied. All joints and crevices are sealed with elastic sealing compound for enhanced weather resistance.
Corner Fittings:
Standard ISO-compliant corner fittings ensure safe handling and compatibility with lifting systems.
Floor:
Made of 28 mm thick plywood or OSB. All joints between the boards and around the perimeter are sealed with waterborne sealant to ensure durability and moisture protection.
Dimensions:
- External: 2,991 mm (L) × 2,438 mm (W) × 2,591 mm (H)
- Internal: 2,800 mm (L) × 2,350 mm (W) × 2,390 mm (H)

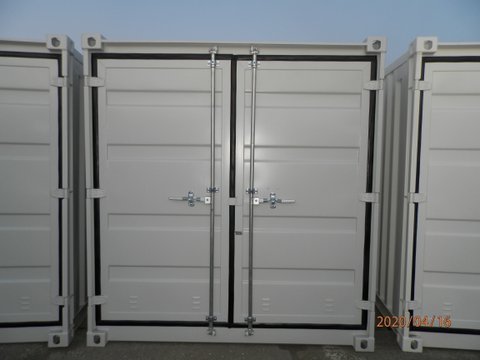

Doors:
- Opening Dimensions: 2,315 mm (W) × 2,270 mm (H)
- Double-leaf doors, lockable, designed for frequent use and easy access.
Capacity & Weight:
- Volume: 15.7 m³
- Maximum Gross Weight: 5,000 kg
- Tare Weight (±2%): 980 kg
Forklift Pockets (optional):
- Width: 355 mm
- Height: 90 mm
- Axis Spacing: 1,140 mm
Disclaimer:
All dimensions and specifications may vary. Only values confirmed in the official offer are binding.
Technical data
| Internal dimensions | L x W x H : 2.790 x 2.348 x 2.384 mm |
|---|---|
| External dimensions | L x W x H : 3.049 x 2.438 x 2.591 mm |
| Capacity | 16,97 qm |
| Weight | 1150kg |
| Color | Any |
